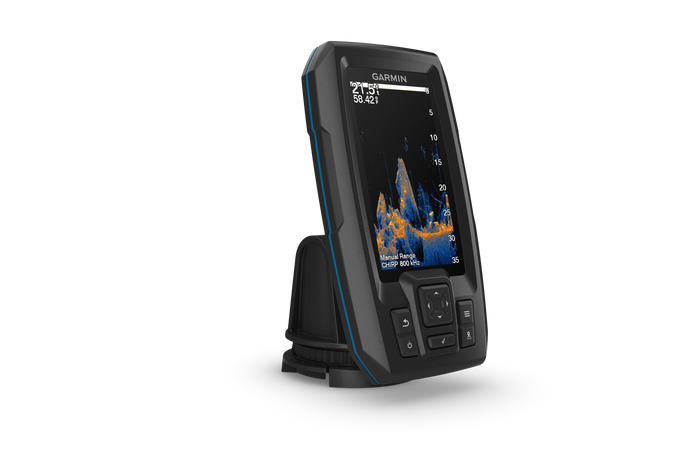

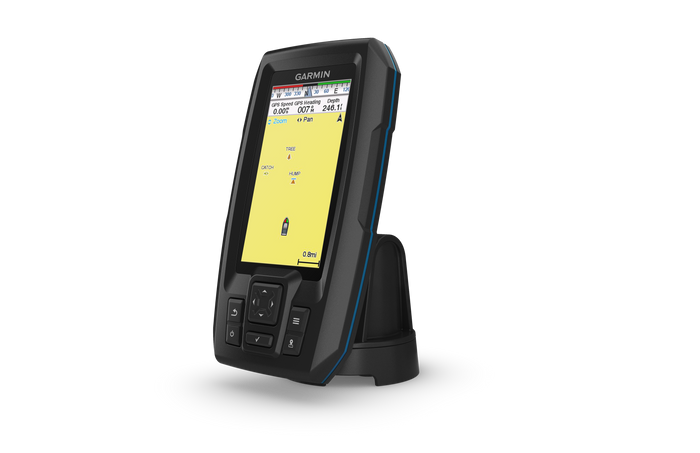

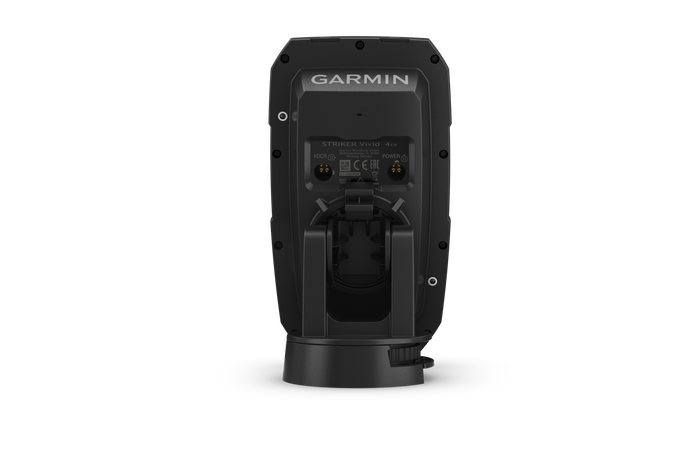

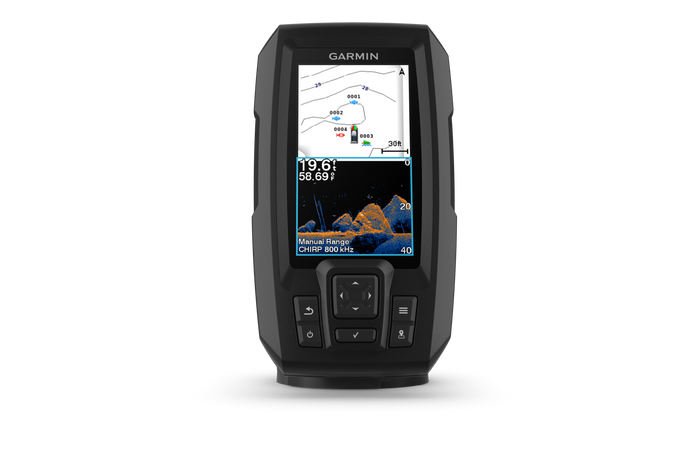

Garmin STRIKER™ Vivid 4cv with GT20-TM Transducer - Fishfinder
Garmin STRIKER™ Vivid 4cv with GT20-TM Transducer - Fishfinder
THE CHOICE IS YOURS
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 4cv fishfinder with transducer.
- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. Use the included transducer to get CHIRP traditional and ClearVü sonars.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1' contours, just saying.
In the Box
- STRIKER Vivid 4cv fishfinder
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount
- Hardware
- Documentation
A new way to see what’s under the water.
CLEAR, COLORFUL SONAR
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 4” fishfinder.
BUILT-IN SONAR
Use the included GT20 transducer to get Garmin CHIRP traditional sonar and CHIRP ClearVü scanning sonar.
WAYPOINT MARKING
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
HIGH-SENSITIVITY GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 4cv fishfinder, you can store up to 2 million acres of maps with 1’ contours1.
INCLUDED HARDWARE
The STRIKER Vivid 4cv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
FEATURES
| Transmit power | 300 W (RMS) |
| NMEA 0183 Compatible | No |
| Has built-in receiver | Yes |
| USB ports | No |
| Autogain technology (minimizes clutter; maximizes targets) | Yes |
| SideVü | No |
| LakeVü g3 Ultra | No |
| Water temperature sensor included | Yes |
| NMEA 2000 Compatible | No |
| GLONASS | No |
| Track points | 50,000 |
| Panoptix™ sonar | No |
| A-scope (real time display of fish passing through transducer beam) | Yes |
| Adjustable depth line (measures depth of underwater objects) | Yes |
| LakeVü g3 | No |
| Typical current draw | 0.40 A |
| Supports WAAS | Yes |
| Max current draw | 1.5 A |
| Built-in Auto Guidance | No |
| Standard Mapping | No |
| LakeVu (inland) | No |
| Fish Symbol ID (helps identify fish targets) | Yes |
| Displays sonar | Yes |
| Water Temperature Log | Yes |
| ANT+ (Connectivity) | No |
| BNC external GPS antenna port | No |
| Garmin Wi-Fi network (local connection) | No |
| Input | Keyed |
| Depth range shading | Yes |
| Garmin Quickdraw Contours | Yes |
| BLUETOOTH® pairing | No |
| Split-screen zoom | Yes |
| Raster chart support | No |
| 4-pin transducer ports | 1 |
| ClearVü | Yes |
| Tracks | 50 |
| Galileo | No |
| LiveScope | No |
| Bottom Lock (shows return from the bottom up) | Yes |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
| Tide Tables | No |
| Power Consumption | 4.8 |
| BlueChart (coastal) | No |
| Traditional sonar (dual frequency/beam) | Built-in |
